Torque Control Wrench

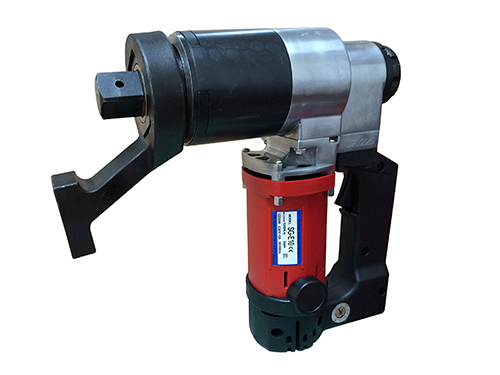

Electric Torque Wrench

Electric Torque Wrench

    • non-impacting electric torque wrench

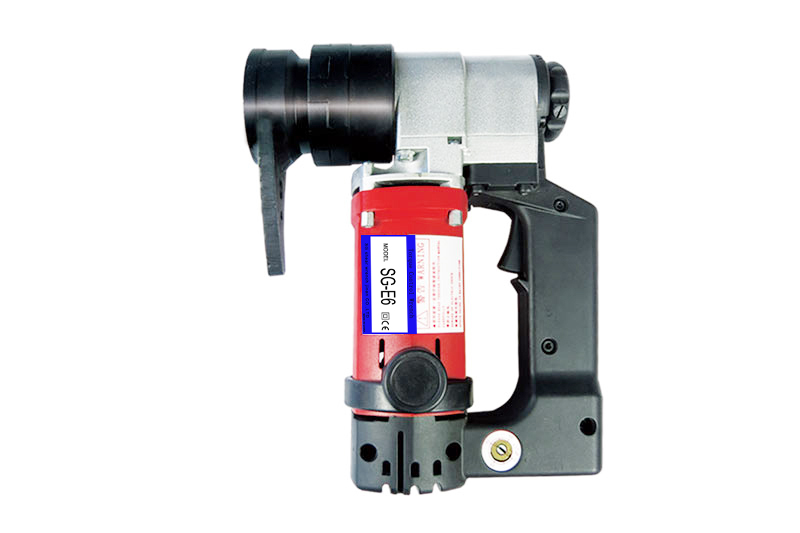

    • Model:SG-E6
    • Applicate for:M16,M20
    •                       5/8",3/4"
    • For:Hexagon Bolt
    • Power consumption:1250W
    • Torque range:300-600N.m
    •                         221-443ft.lbs
    • Ro speed r/min:17.5
    • Voltage:220V,110V
    • Weight:5.3kg
SG-E6

    • non-impacting electric torque wrench

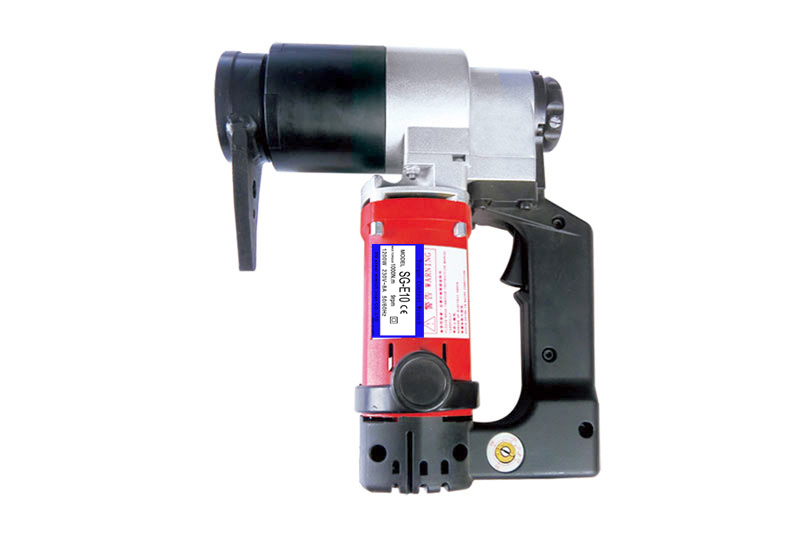

    • Model:SG-E10
    • Applicate for:M22,M24
    •                       7/8",1"
    • For:Hexagon Bolt
    • Power consumption:1350W
    • Torque range:400-1000N.m
    •                        295-738ft.lbs
    • Ro speed r/min:12
    • Voltage:220V,110V
    • Weight:6kg
SG-E10

    • non-impacting electric torque wrench

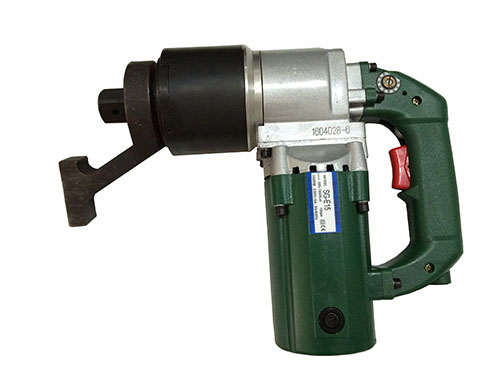

    • Model:SG-E15
    • Applicate for:M24,M27
    •                       1",1-1/8"
    • For:Hexagon Bolt
    • Power consumption:1450W
    • Torque range:600-1500N.m
    •                         443-1107ft.lbs
    • Ro speed r/min:8
    • Voltage:220V,110V
    • Weight:7.6kg

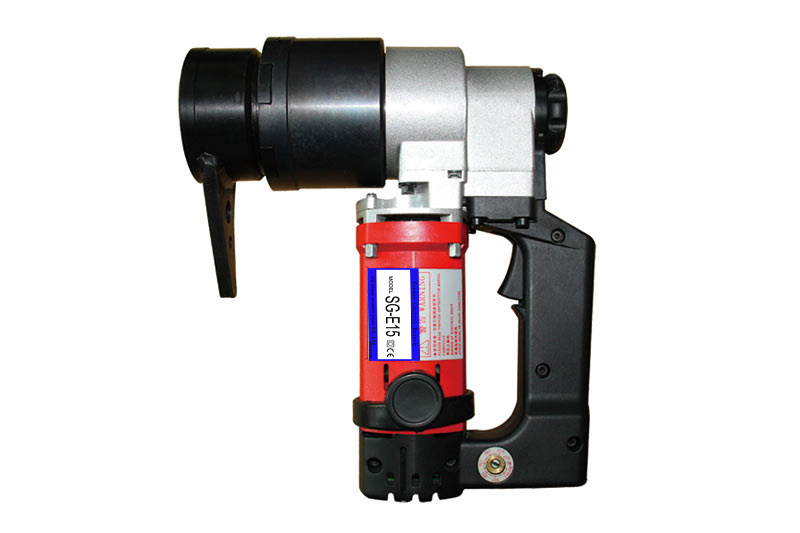

SG-E15

    • non-impacting electric torque wrench
    • Model:SG-E20
    • Applicate for:M27,M30
    •                       1-1/8",1-1/4"
    • For:Hexagon Bolt
    • Power consumption:1450W
    • Torque range:1000-2100N.m
    •                         738-1550ft.lbs
    • Ro speed r/min:5.5
    • Voltage:220V,110V
    • Weight:7.9kg

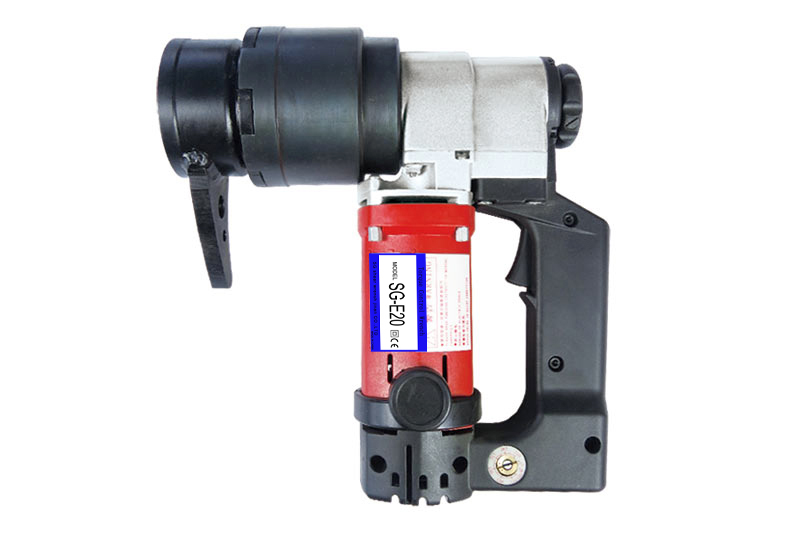

SG-E20

    • non-impacting electric torque wrench
    • Model:SG-E40
    • Applicate for:M36,M42
    •                         1-1/2",1-5/8"
    • For:Hexagon Bolt
    • Power consumption:1450W
    • Torque range:2000-4000N.m
    •                        1476-2952ft.lbs
    • Ro speed r/min:2.5
    • Voltage:220V,110V
    • Weight:12kg

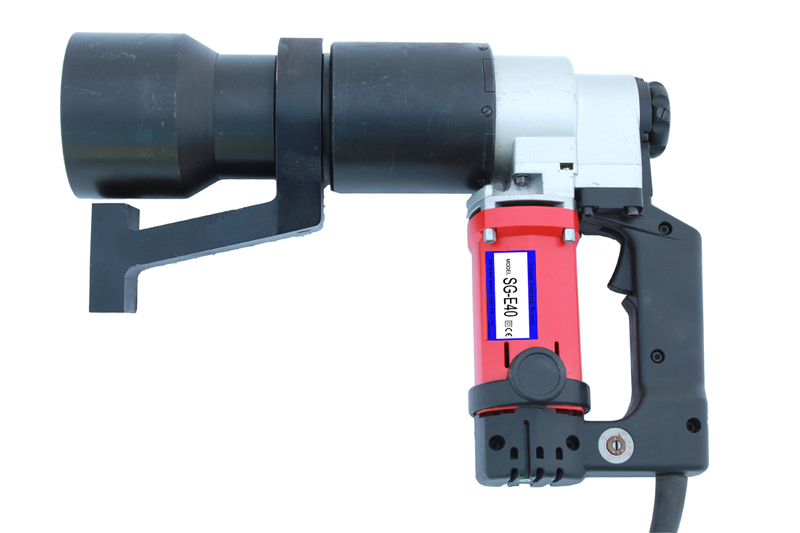

SG-E40

Electric torque control wrench,non-impact,electricity, is designed to install heavy hex structural bolts,it shuts off when the torque requirements is reached.The tools offers a non-reactive, torque controlled option for hex bolt installation.

Electric Torque Wrench C Serie

Electric Torque Wrench C Serie

    • non-impacting electric torque wrench

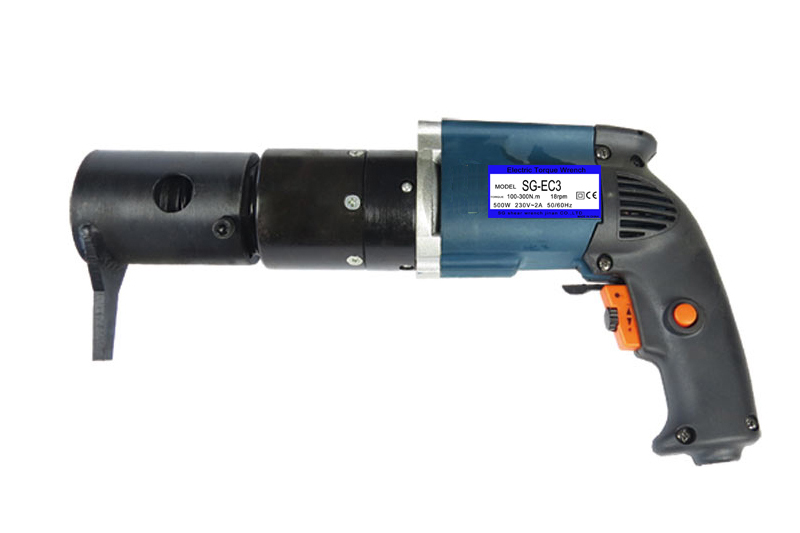

    • Model:SG-EC3
    • Applicate for:M12,M16
    •                        1/2",5/8"
    • For:Hexagon Bolt
    • Power consumption:1450W
    • Torque range:100-300N.m
    •                         73-221ft.lbs
    • Ro speed r/min:20
    • Voltage:220V,110V
    • Weight:3.5kg
SG-EC3

    • non-impacting electric torque wrench
    • Model:SG-EC6
    • Applicate for:M16,M20
    •                       5/8",3/4"
    • For:Hexagon Bolt
    • Power consumption:1000W
    • Torque range:250-600N.m
    •                        185-443ft.lbs
    • Ro speed r/min:16
    • Voltage:220V,110V
    • Weight:6.3kg

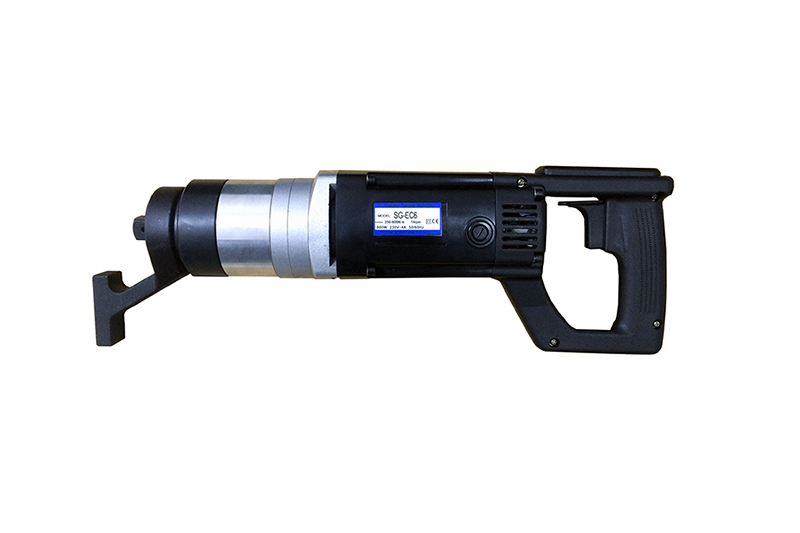

SG-EC6

    • non-impacting electric torque wrench
    • Model:SG-EC10
    • Applicate for:M22,M24
    •                         7/8",1"
    • For:Hexagon Bolt
    • Power consumption:1100W
    • Torque range:400-1000N.m
    •                         295-738ft.lbs
    • Ro speed r/min:13
    • Voltage:220V,110V
    • Weight:7.6kg
SG-EC10

    • non-impacting electric torque wrench

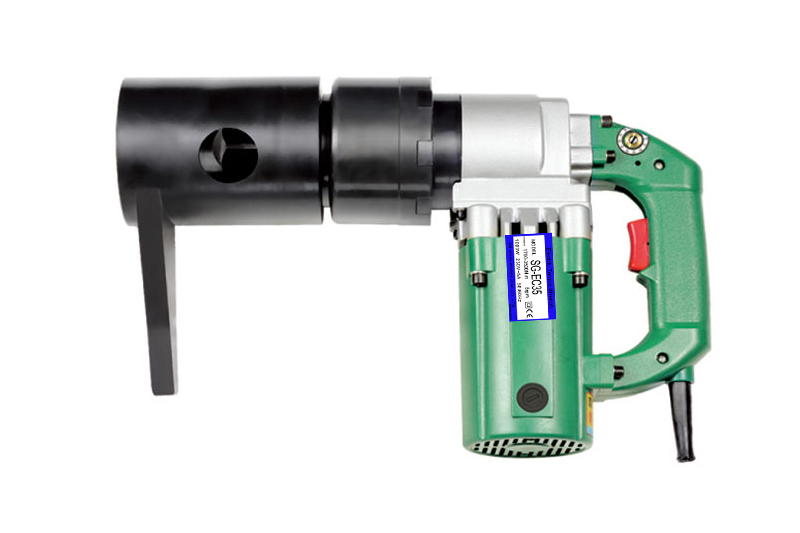

    • Model:SG-EC15
    • Applicate for:M24,M27
    •                       1",1-1/8"
    • For:Hexagon Bolt
    • Power consumption:1000W
    • Torque range:500-1500N.m
    •                       369-1107ft.lbs
    • Ro speed r/min:12
    • Voltage:220V,110V
    • Weight:8.5kg

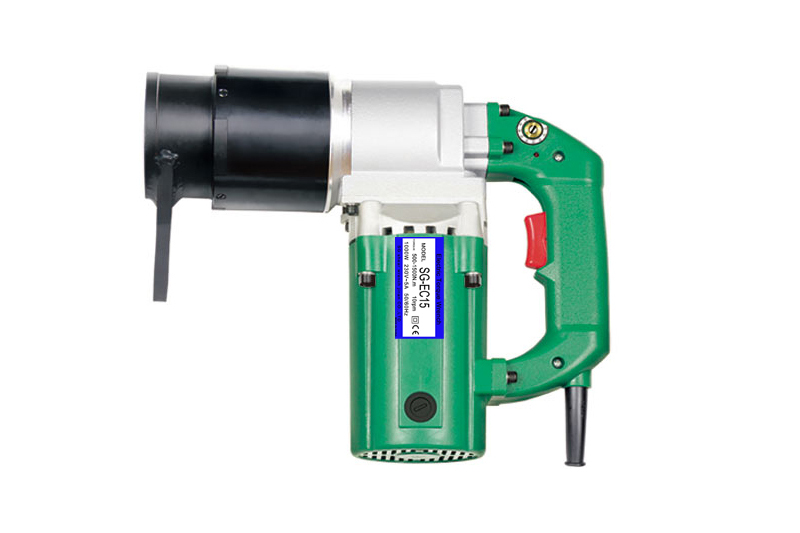

SG-EC15

    • non-impacting electric torque wrench
    • Model:SG-EC25
    • Applicate for:M27,M30
    •                       1-1/8",1-1/4"
    • For:Hexagon Bolt
    • Power consumption:1100W
    • Torque range:500-1500N.m
    •                        369-1107ft.lbs
    • Ro speed r/min:8
    • Voltage:220V,110V
    • Weight:9.6kg

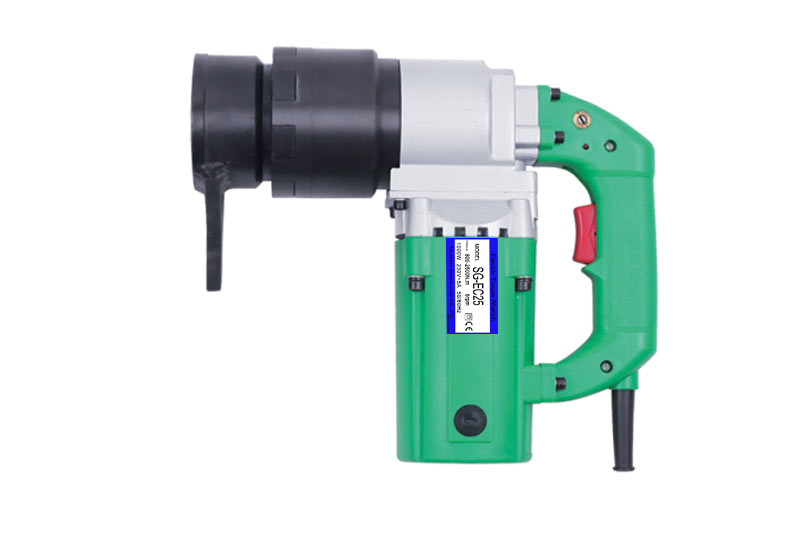

SG-EC25

    • non-impacting electric torque wrench
    • Model:SG-EC35
    • Applicate for:M33,M36
    •                 1-3/8",1-1/4"
    • For:Hexagon Bolt
    • Power consumption:1200W
    • Torque range:1700-3500N.m
    •                         1255-2583ft.lbs
    • Ro speed r/min:6
    • Voltage:220V,110V
    • Weight:10.7kg
SG-EC35

Electric Turn of Nut Wrench C series is classic type,stable working.

Electirc Torque Wrench N Serie

Electirc Torque Wrench N Serie

    • non-impacting electric torque wrench
    • Model:SG-N10
    • Applicate for:M22,M24
    •                       7/8",1"
    • For:Hexagon Bolt
    • Power consumption:1500W
    • Torque range:400-1000N.m
    •                        295-738ft.lbs
    • Ro speed r/min:10
    • Voltage:220V,110V
    • Weight:6.9kg

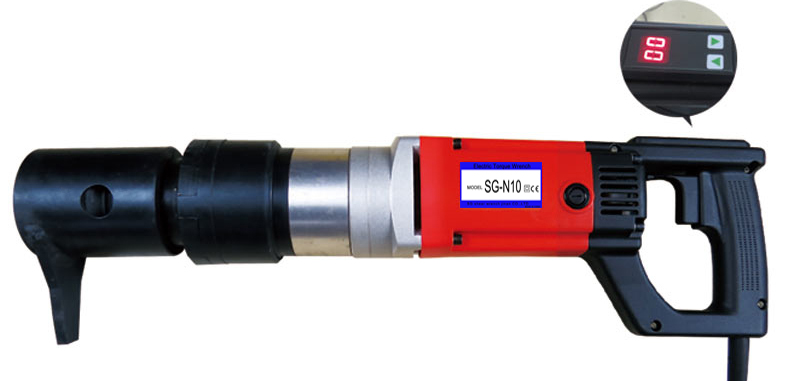

SG-N10

    • non-impacting electric torque wrench
    • Model:SG-N15
    • Applicate for:M24,M27
    •                     1",1-1/8"
    • For:Hexagon Bolt
    • Power consumption:1500W
    • Torque range:600-1500N.m
    •                       443-1107ft.lbs
    • Ro speed r/min:8
    • Voltage:220V,110V
    • Weight:7.8kg
SG-N15

    • non-impacting electric torque wrench

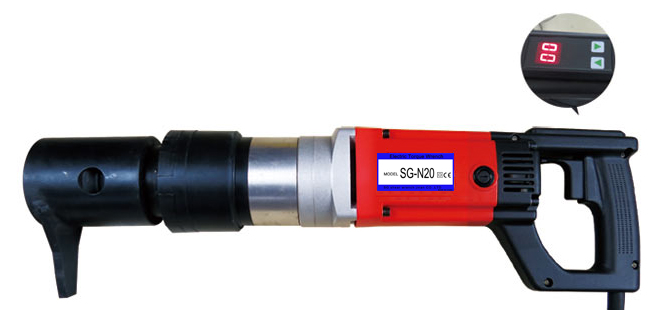

    • Model:SG-N20
    • Applicate for:M27,M30
    •                      1-1/8",1-1/4"
    • For:Hexagon Bolt
    • Power consumption:1500W
    • Torque range:800-2000N.m
    •                       590-1476ft.lbs
    • Ro speed r/min:4
    • Voltage:220V,110V
    • Weight:8.4kg
SG-N20

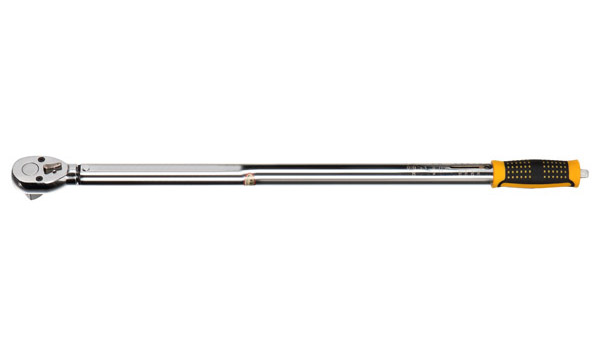

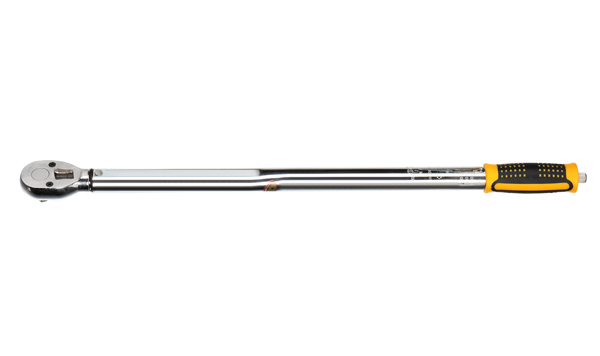

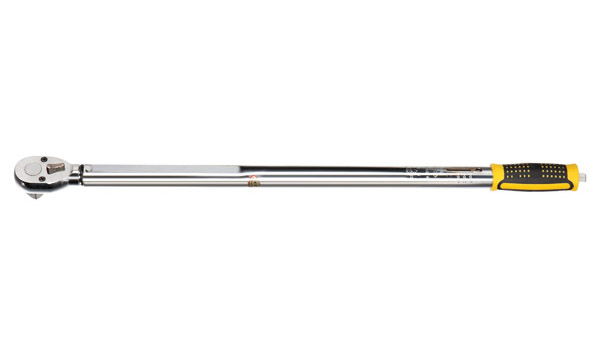

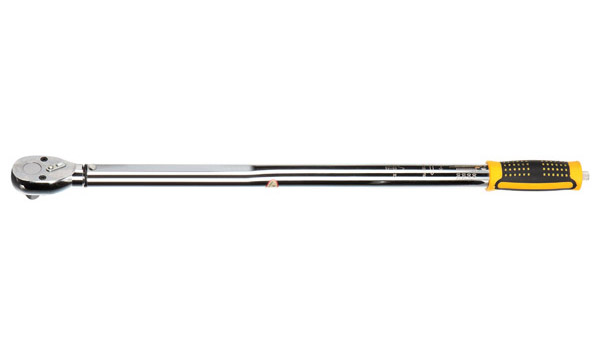

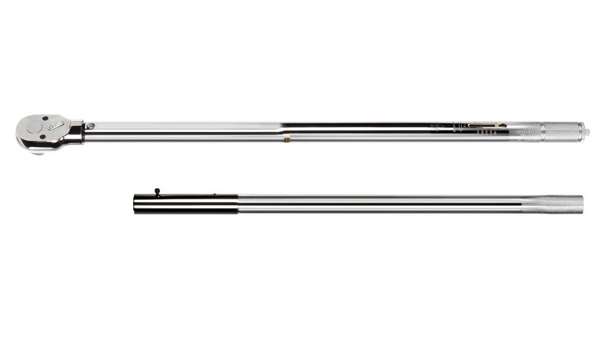

Manual Torque Wrench

Manual Torque Wrench

    • Modle:SG-H50
    • Torque range:10-50N.m
    • Square drive:12.7*12.7mm
    • Division:1N.m
    • Dimension:412*40*40mm
    • Weight:1kg
SG-H50

    • Modle:SG-H100
    • Torque range:20-100N.m
    • Square drive:12.7*12.7mm
    • Division:1N.m
    • Dimension:412*40*40mm
    • Weight:1kg
SG-H100

    • Modle:SG-H200
    • Torque range:40-200N.m
    • Square drive:12.7*12.7mm
    • Division:7.5N.m
    • Dimension:635*48*48mm
    • Weight:2.2kg
SG-H200

    • Modle:SG-H300
    • Torque range:60-300
    • Square drive:3/4"
    • Division:7.5N.m
    • Dimension:635*48*48mm
    • Weight:2.2kg
SG-H300

    • Modle:SG-H450
    • Torque range:150-450
    • Square drive:3/4"
    • Division:10N.m
    • Dimension:685*48*52mm
    • Weight:2.5kg
SG-H450

    • Modle:SG-H500
    • Torque range:100-500
    • Square drive:3/4"
    • Division:10N.m
    • Dimension:685*48*52mm
    • Weight:2.5kg
SG-H500

    • Modle:SG-H760
    • Torque range:280-760
    • Square drive:3/4"
    • Division:10N.m
    • Dimension:835*55*58mm
    • Weight:4.5kg
SG-H760

    • Modle:SG-H1000
    • Torque range:200-1000
    • Square drive:1"/3/4"
    • Division:12.5N.m
    • Dimension:900*58*58mm
    • Weight:6.5kg
SG-H1000

    • Modle:SG-H2000
    • Torque range:750-2000
    • Square drive:1"
    • Division:25N.m
    • Dimension:1010*69*68mm
    • Weight:10kg
SG-H2000

Manual Torque Wrench,reset torque,simple type.

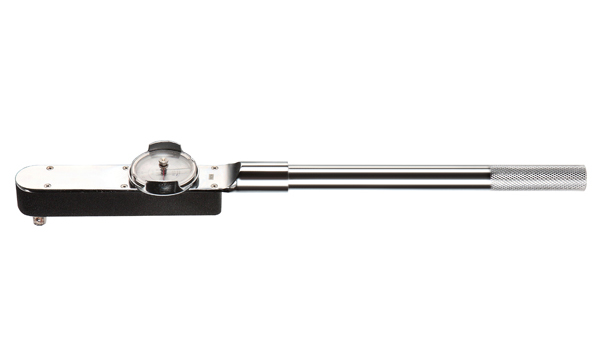

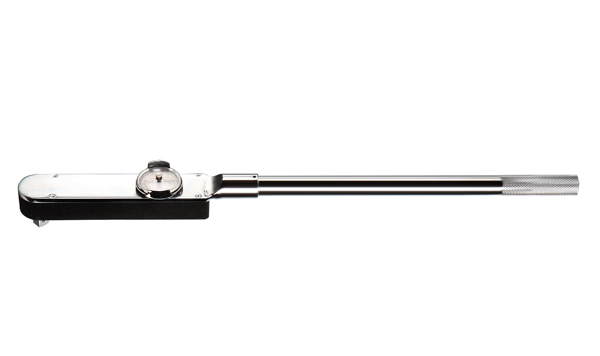

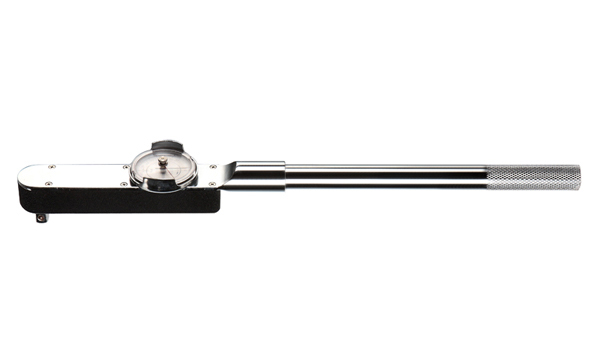

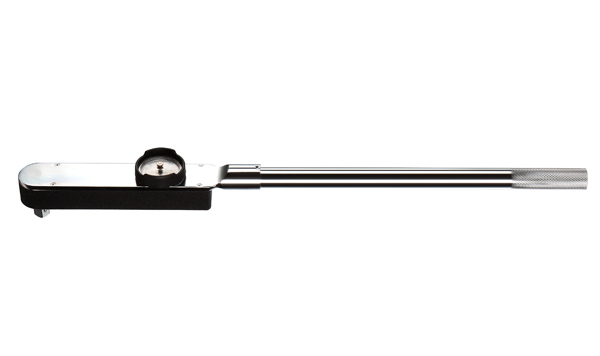

Manual Torque Calibrator

Manual Torque Calibrator

    • Modle:SG-S50
    • Torque range:0-50N.m
    • Square drive:12.7*12.7mm
    • Division:0.5N.m
    • Dimension:305*68*70mm
    • Weight:0.8kg
SG-S50

    • Modle:SG-S100
    • Torque range:0-100N.m
    • Square drive:12.7*12.7mm
    • Division:1N.m
    • Dimension:305*68*75mm
    • Weight:0.8kg
SG-S100

    • Modle:SG-S200
    • Torque range:60-200N.m
    • Square drive:12.7*12.7mm
    • Division:2N.m
    • Dimension:900*68*76mm
    • Weight:1.7kg
SG-S200

    • Modle:SG-S300
    • Torque range:90-300N.m
    • Square drive:12.7*12.7mm
    • Division:3N.m
    • Dimension:600*68*76mm
    • Weight:1.7kg
SG-S300

    • Modle:SG-S500
    • Torque range:150-500N.m
    • Square drive:19*19mm
    • Division:5N.m
    • Dimension:900*68*97mm
    • Weight:4kg
SG-S500

    • Modle:SG-S750
    • Torque range:250-750N.m
    • Square drive:3/4"
    • Division:5N.m
    • Dimension:900*68*97mm
    • Weight:4kg
SG-S750

    • Modle:SG-S1000
    • Torque range:300-1000N.m
    • Square drive:3/4"
    • Division:10N.m
    • Dimension:900*68*103mm
    • Weight:8kg
SG-S1000

    • Modle:SG-S2000
    • Torque range:600-2000N.m
    • Square drive:1"
    • Division:20N.m
    • Dimension:900*68*103mm
    • Weight:8kg
SG-S2000

Manual torque calibrator suits for on-site calibrate,as its easy taken,simple operate.
