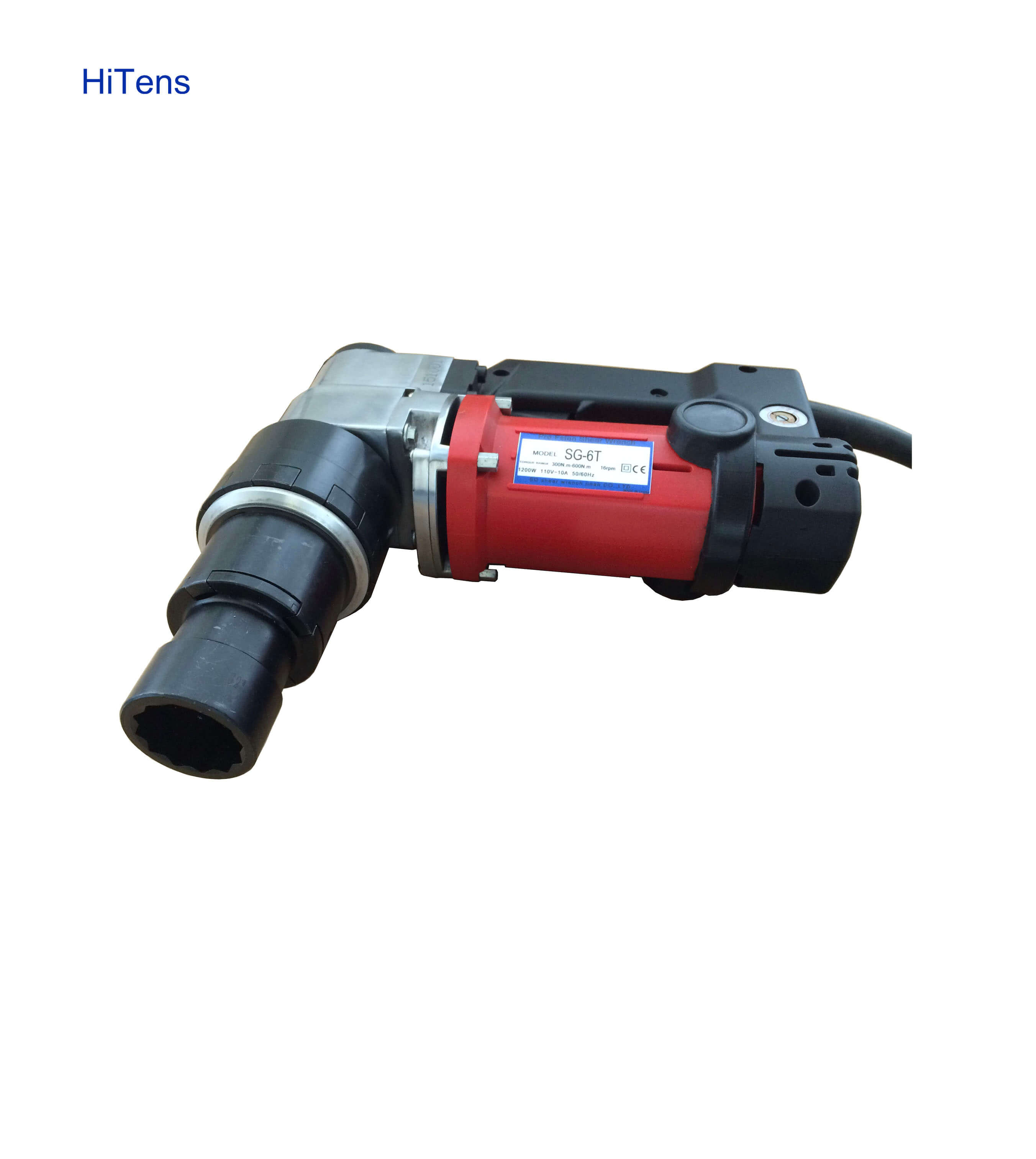

SG-6T Pre-Fasten shear wrench
Want to talk to a
specialist now?
specialist now?
+86-15550020331
Business Hours: 8am - 6pm Est
Description
| No | Item | Data |
| 1 | Power | Electricity |
| 2 | For | Tension control bolt |
| 3 | Power consumption W | 1200 |
| 4 | Torque | 300-600N.m 221-443ft.lbs |
| 5 | Ro Speed r/min | 16 |
| 6 | Applicate for | M20,M22,M24 3/4″,7/8″,1″ |
| 7 | Type | Non-impact |
| 8 | Outer Diameter (D) mm | 77 |
| 9 | Weight kg | 5.6 |
What’s else of this type? Overview
| Model | Power consumption W | Currency A | Voltage V | Frequency HZ | Ro Speed r/min | Max Torque | Applicate | Outer Diameter (D) mm | Weight kg |
| SG-6T | 1200 | 5 | 220 | 50-60 | 16 | 300-600N.m 221-443ft.lbs | M20,M22,M24 3/4″,7/8″,1″ | 77 | 5.6 |
| SG-10T | 1350 | 5 | 220 | 50-60 | 6.5 | 600-1000N.m 443-738ft.lbs | M27,M30 1-1/8″,1-1/4″ | 85 | 6.5 |
More about Tension Control Bolt
