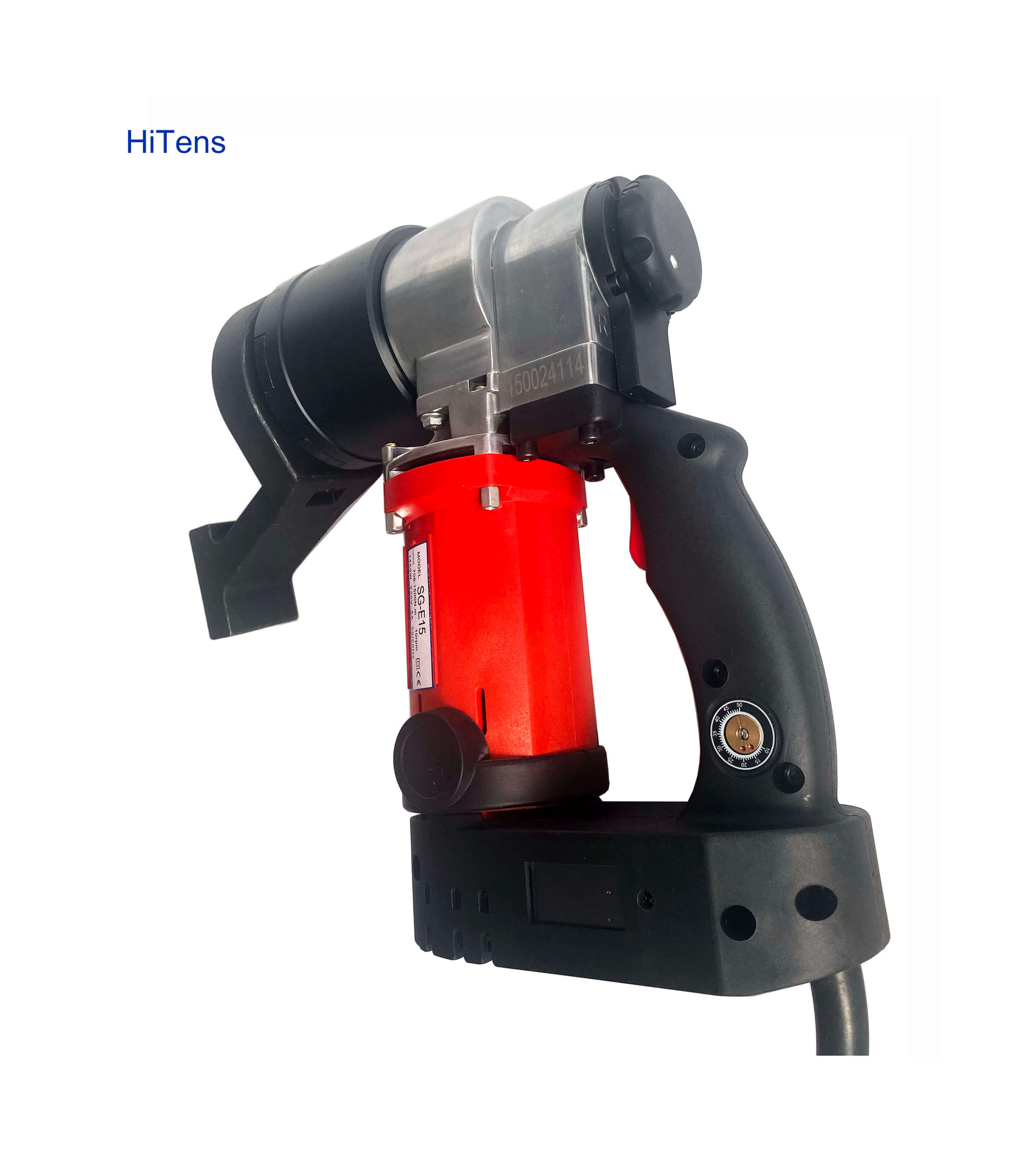

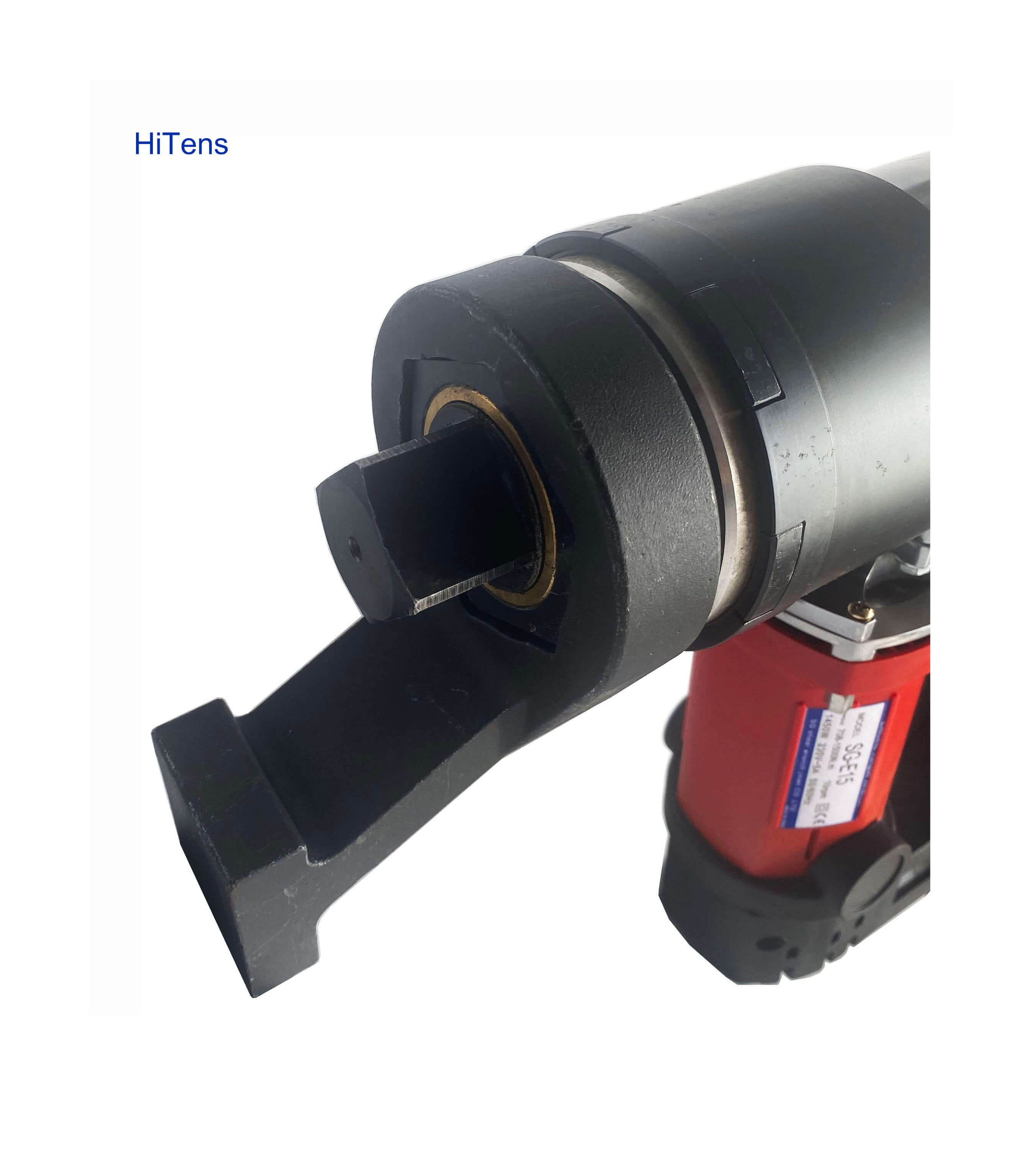

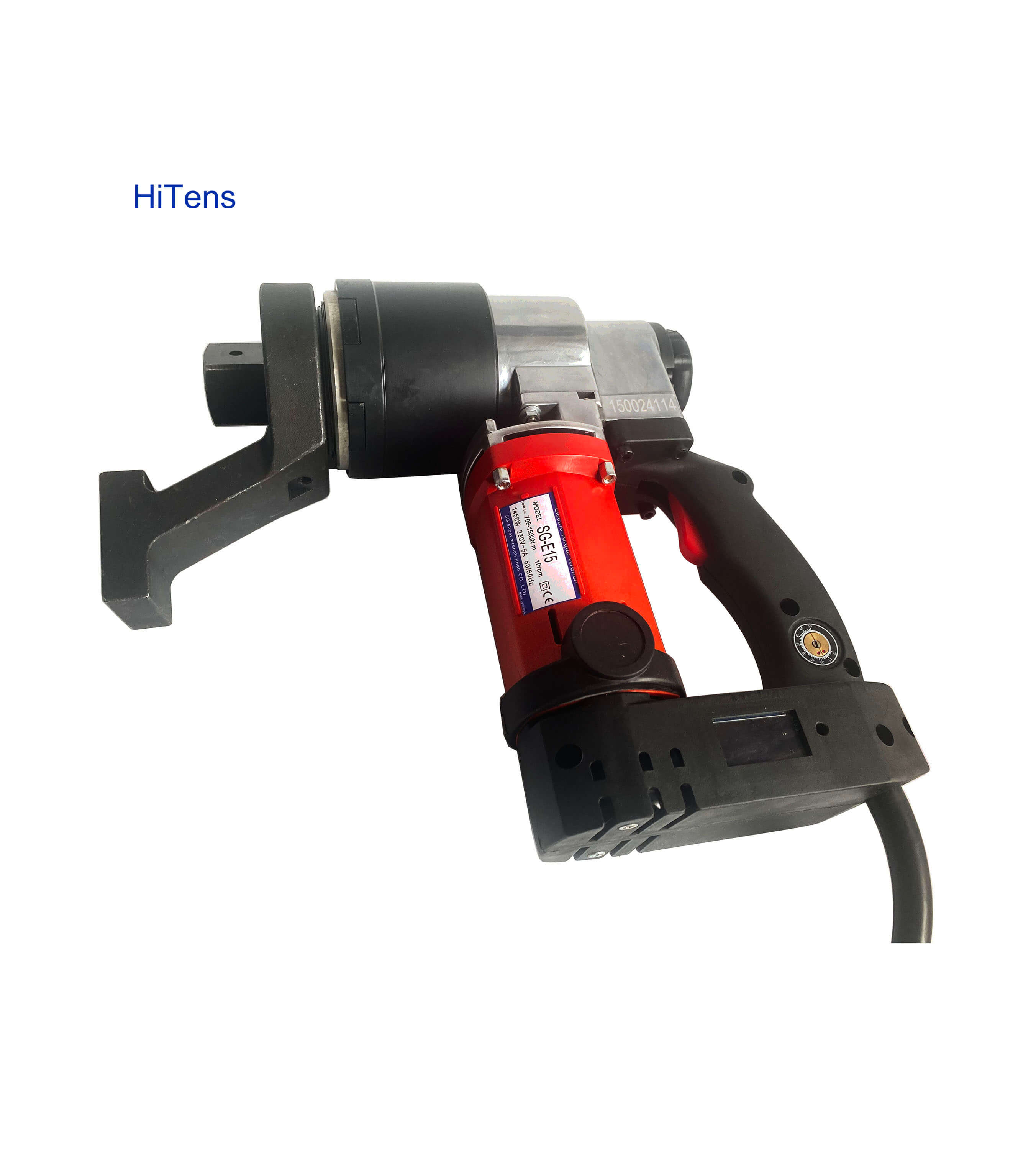

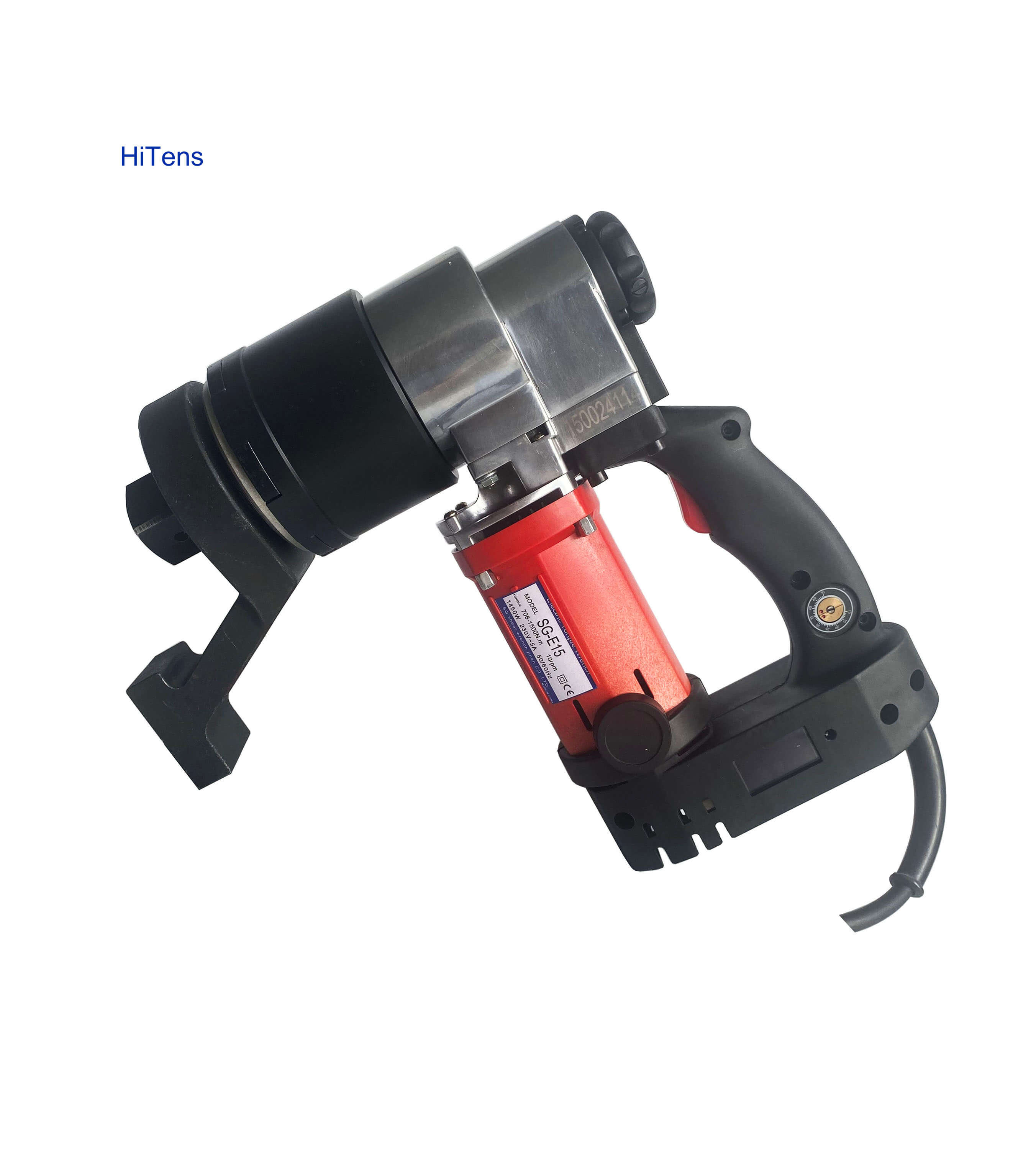

SG-E15D digital electric torque wrench
Want to talk to a
specialist now?
specialist now?
+86-15550020331
Business Hours: 8am - 6pm Est
Description
| No | Item | Data |
| 1 | Power | Electricity |
| 2 | For | Hexagon bolt |
| 3 | Power consumption W | 1450 |
| 4 | Torque range | 600-1500N.m 443-1107ft.lbs |
| 5 | Ro Speed r/min | 8 |
| 6 | Applicate for | M24,M27 1″，1-1/8″ |
| 7 | Square drive | 1″ |
| 8 | Type | Non-impact |
| 9 | Outer Diameter (D) mm | 98 |
| 10 | Weight kg | 14 |
Features
*Big Screen, torque show directly
*Torque controlled,automatically stop after reached setted torque
*for 8.8 10.9 12.9s hexagon bolt fasten
*110V/220V available
*Non-impact
What’s else of this type? Overview
| Model | Power consumption W | Currency A | Voltage V | Frequency HZ | Ro Speed r/min | Torque | Applicate | Square Drive | Outer Diameter(D) mm | Weight kg |
| SG-E6D | 1250 | 5 | 220 | 50-60 | 17.5 | 300-600N.m 221-443ft.lbs | M16,M20 5/8″,3/4″ | 3/4″ | 79 | 9 |
| SG-E10D | 1350 | 5 | 220 | 50-60 | 12 | 400-1000N.m 443-1107ft.lbs | M22,M24 7/8″,1″ | 1″ | 85 | 13 |
| SG-E15D | 1450 | 6 | 220 | 50-60 | 8 | 600-1500N.m 443-1107ft.lbs | M24,M27 1″,1-1/8″ | 1″ | 98 | 14 |
| SG-E20D | 1450 | 6 | 220 | 50-60 | 5.5 | 1000-2100N.m 738-1550ft.lbs | M27,M30 1-1/8″,1-1/4″ | 1-1/4″ | 98 | 17 |
More about high strength hexagon bolt
